Whelen LED Fwd Position Light Assembly, 7110500-18D, 7110500

  • Sale
  • Regular price $730.00
Shipping calculated at checkout.


Product Number: 7110500-18D

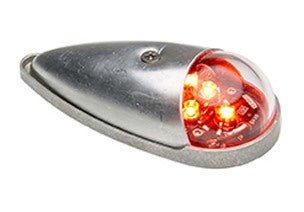

Whelen LED Fwd Position Light Assembly

71105 series are fully FAA TSO compliant Forward Position lights. LED's provide a significant reduction in electrical current draw over conventional light bulbs. Direct replacement for Whelen Model W1285 series (Version STC'd on Learjet Aircraft).

FAA-PMA Approved

Approval Basis: FAA-TSO Approved.

Brand: Whelen Strobes / Lighting

Specifications:

  • LED Navigation Light Power Consumption: 0.25 Amps @ 14V or 28V

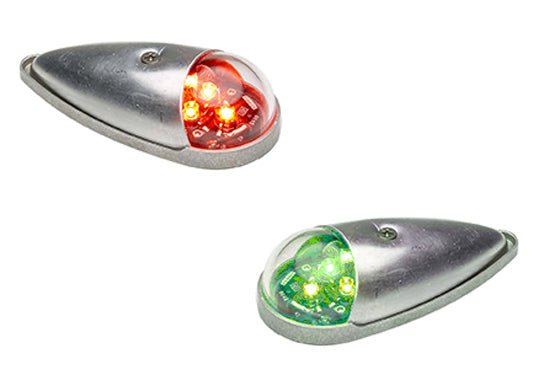

    •LED Colors: Aviation Red, Aviation Green
    •Weight: 0.20 Lbs (91mm) 14V, 0.25 Lbs (113mm) 28V
    •Exposed Height: 2.70 (69mm)
    •Lens: Clear Polycarbonate

OEM Part Number:

7110501 14V Green
7110502 14V Red
7110503 28V Green
7110504 28V Red



Eligible Aircraft: All models with a 6" nav pad on the wing tips.
