Product Number: 20-500x5-CNGF-18D
Cessna 150, 152, 172, 175, 177, 182, 206, 207, 210 for use with the standard 500x5 nose gear tire
FAA-PMA-STC approved

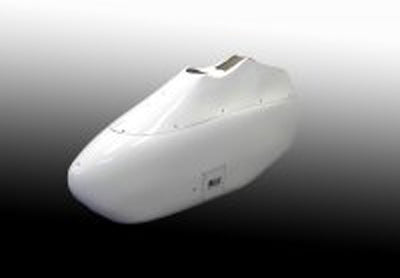

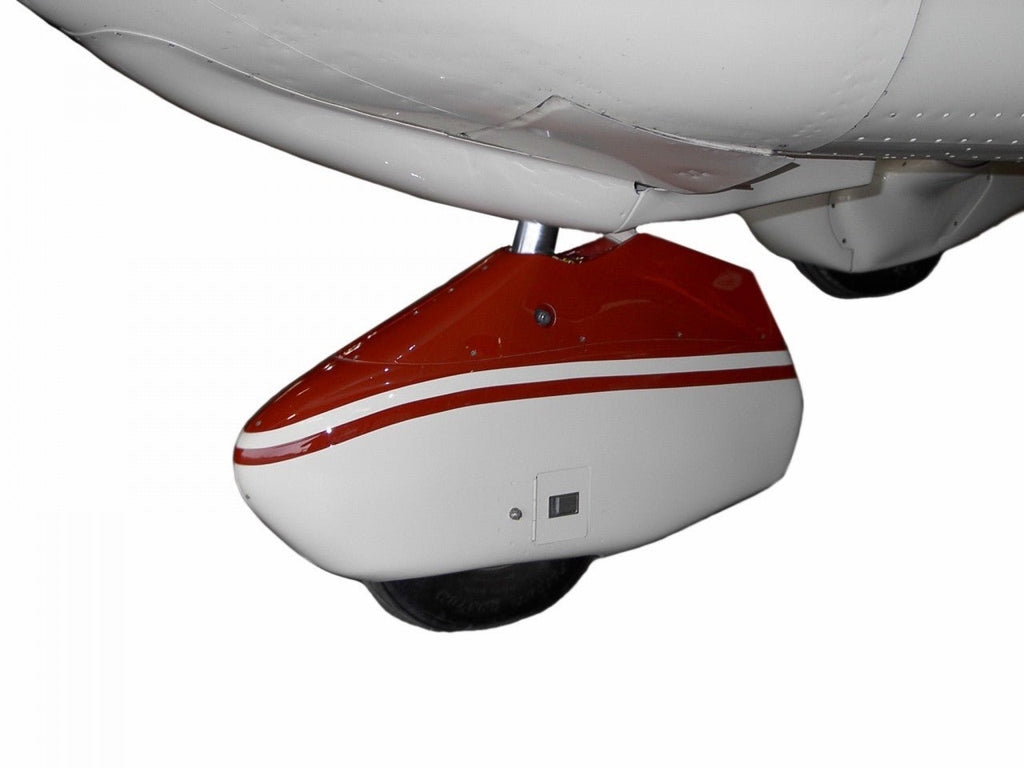

This nose wheel pant is the cleanest design on the market.
A removeable upper fairing efficiently encloses the lower portion of the nose strut for improved aerodynamics.
The pant is assembled in two pieces, allowing removal and installation without having to remove the tire or raise the aircraft.
A hinged door is provided for quick tire pressure checks.
Parts are made of high quality hand laminated fiberglass for superior strength and long life. The sleek design eliminates the ridges found on the Cessna pants and offers improved aerodynamics adding 2.75 to 4.0 mph to the aircraft.
Eligible aircraft: Cessna
150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, A150K, 150L, A150L, 150M, A150M
152, A152.
172, 172A, 172B, 172C, 172D, 172E, 172F, 172G, 172H, 172I, 172K
P172D
R172K, 172L, 172M, 172N, 172P, 172Q, 172R
175, 175A, 175B, 175C.
177, 177A, 177B.
182, 182A, 182B, 182C, 182D, 182E, 182F, 182G, 182H, 182J, 182K, 182L, 182M, 182N, 182P, 182Q, 182R, T182, 182S.
206, P206, P206A, P206B, P206C, P206D, P206E
U206, U206A, U206B, U206C, U206D, U206E, U206F, U206G
TP206A, TP206B, TP206C, TP206D, TP206E
TU206A, TU206B, TU206C, TU206D, TU206E, TU206F, TU206G
206H
T206H
207, T207, 207A, T207A.
210-5, 210-5A
NOTE: This product is more effective and has added performance if it is used in conjunction with the "Lower Cowl Body Fairing Kit" for the applicable airplane.
