Product Number: 60-RMD-005010-PA-18D (Sold as a Set)

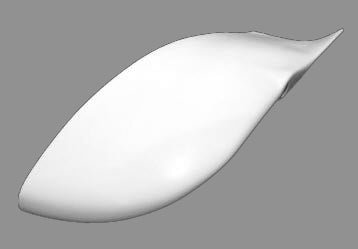

"Piper Upswept Wing Tip Set" without Landing Lights (Straight Wing Hershey Bar).
These replacement wingtips are the newest in tip designs. The design is a combination of the successful Hoerner design combined with a modest upsweep. This design reduces drag while preventing vortices from disturbing the airflow over the outer end of the aileron much like a winglet.
The tips are designed to accept your existing navigation and or strobe lights with a 6" mounting pad. They are made of the highest quality fiberglass using the latest in resin technology for reduced weight and a superior fit.
Wing tips set includes: Right and Left wing tip, STC and installation instructions.
STC No. SA01786SE
Typical installation time: 4 hours
Eligible aircraft:
PA-28-140, 150, 160, 180
PA-28S-180
PA-28R-180, R200
PA-34-200,200T
PA-34-220T
