Product number: 60-30/31-80A

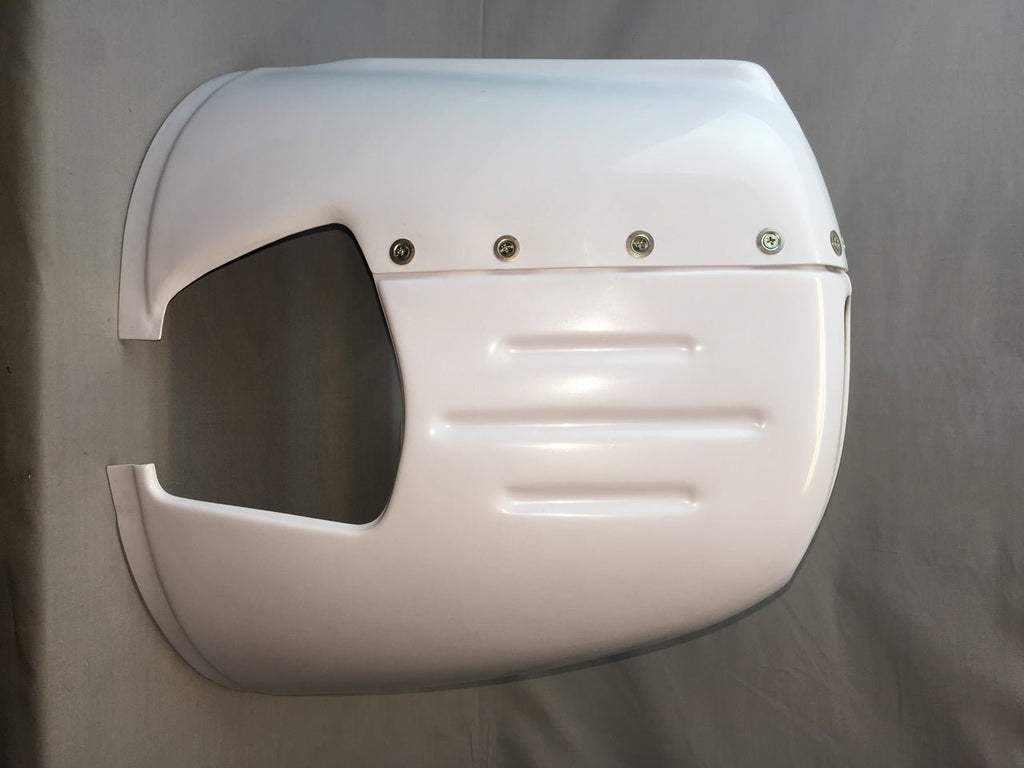

Assembled means: the 60-30 upper and the 60-31 lower are trimmed and put into a fixture to accurately align and assemble the upper and lower halves and install the split line hardware. Hardware that attaches the tailcone assembly to the fuselage is not provided. Use original hardware in that location.
Assembly Includes:

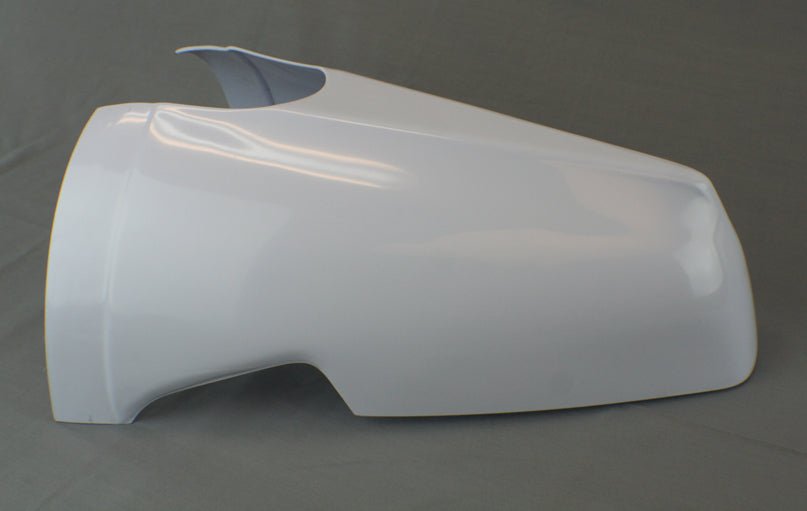

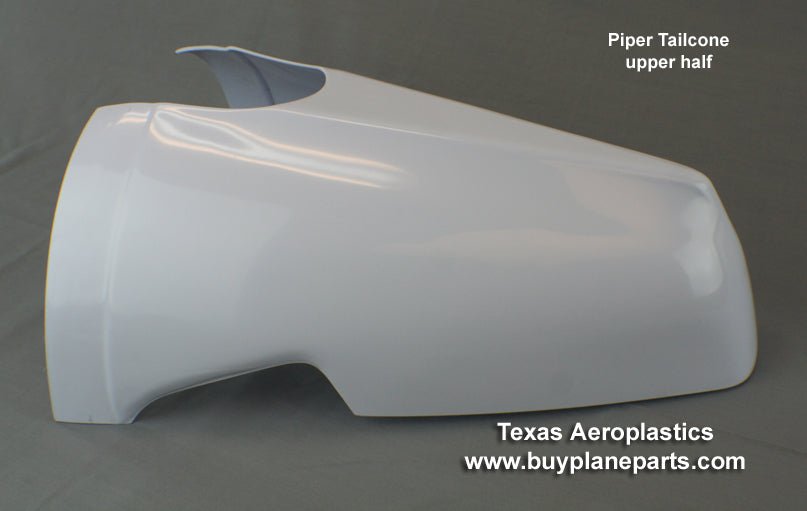

1ea. Piper upper tailcone product# 60-30-80A

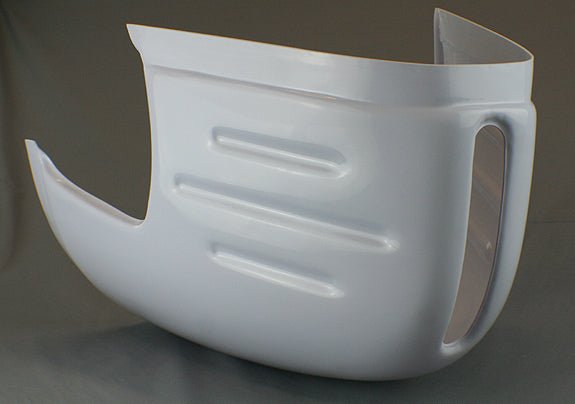

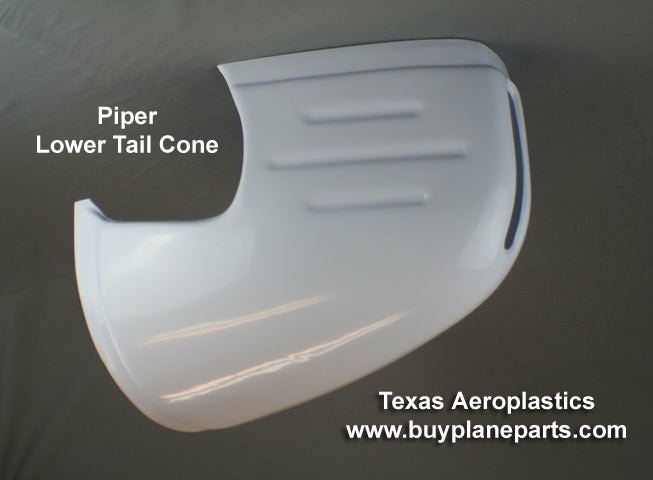

1ea. Piper lower tailcone product# 60-31-80A
10 ea. Piper Clip nuts
10 ea. Flat head Philips 100 degree counter sink stainless screws
10 ea. Tinnerman stainless counter sink washers
FAA-PMA Approved parts
White ABS
Replaces OEM Part Number: 66822-07 and 66822-08
Eligible Aircraft:
PA-28-140,180,181,235,236
PA28R-180,200
PA-32-260,300,301,301T
PA32R-300,301,301
NOTE:
Not for T-tail aircraft
A Manufacturer's "Certificate of Conformance" log book label is available to purchase with this product.
