Product Number: 60-28GF-18D
Piper Main Gear Fairing Set (STC'd)
Kits include: Main gear fairings (attach to your existing wheel fender), New gear-strut fairings (to cover landing gear strut), Wing to strut gear fairings, and stainless steel hardware.
Main Gear Fairing Installation Illustration
|

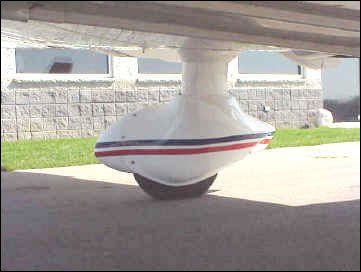

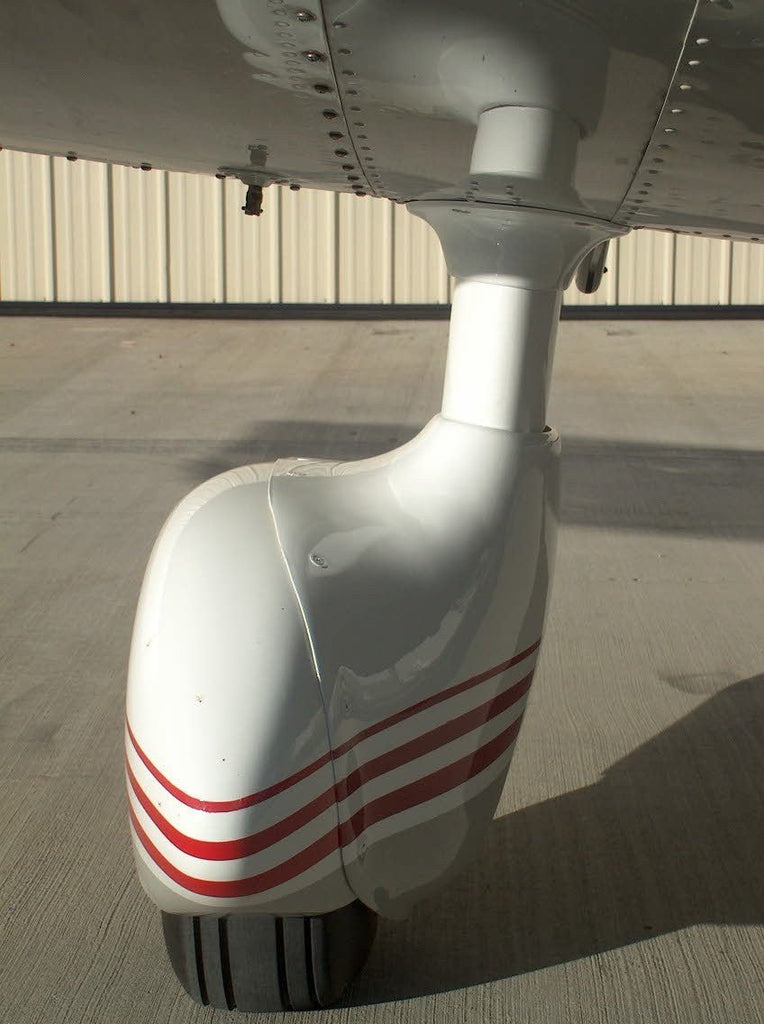

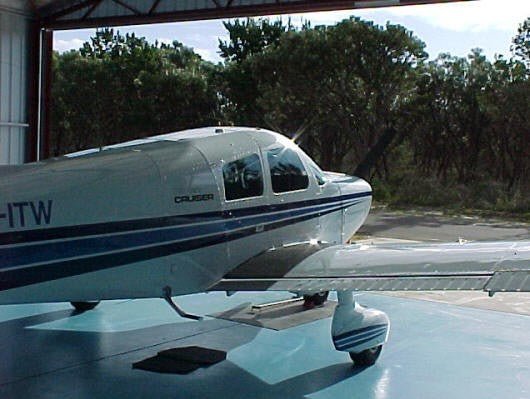

The Knots 2U Main Gear Fairing kit is unlike any other on the market. It attaches to your existing wheel pants and covers the brakes, torque links, brake lines, and struts while maintaining a small sleek profile. In addition a fairing is supplied to smooth the strut into the wing! The fairings will add 5-6 mph in cruise speed as well as a slight increase in climb performance! The parts are made of high quality hand-laid fiberglass with Kevlar reinforcement at all the attachment points. They remove easily for inspections and maintenance. This aerodynamic lightweight modification comes with all Stainless Steel hardware and complete step-by-step instructions. Unlike the later model Piper fairings, these are much smaller and have a total weight of only 5.9 pounds! |
|
|
Part Number: |
28GF |
|
Approval Basis: |
Supplemental Type Certificate No(s) SA1012GL |
|
Aircraft Eligibility: |
Piper PA-28-140, PA-28-150, PA-28-160, PA-28-180, PA-28-235, PA-28-151, PA-28-161 thru 1977, PA-28-181 thru 1977. |
|
Typical Installation Time: |
8.5 hours |
