Product Number: 60-RD-4000-18D
Piper "Deep Extended" Wing Tip Set" With Landing Lights (Straight, Hershey Bar Wing Wing Aircraft only)

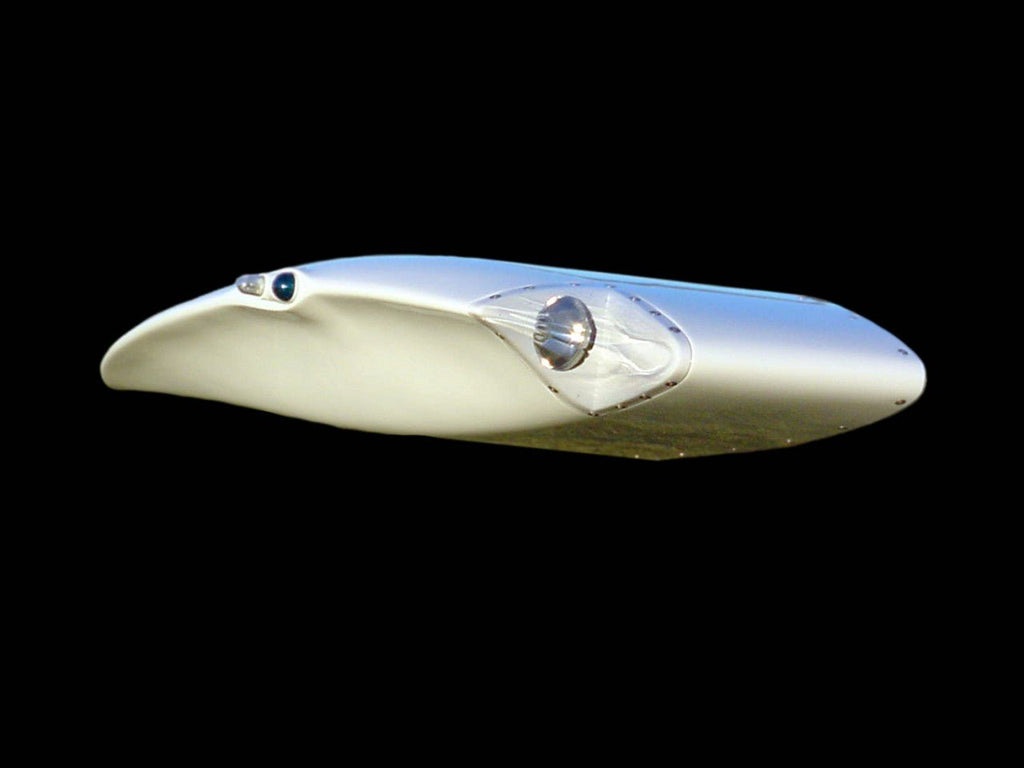

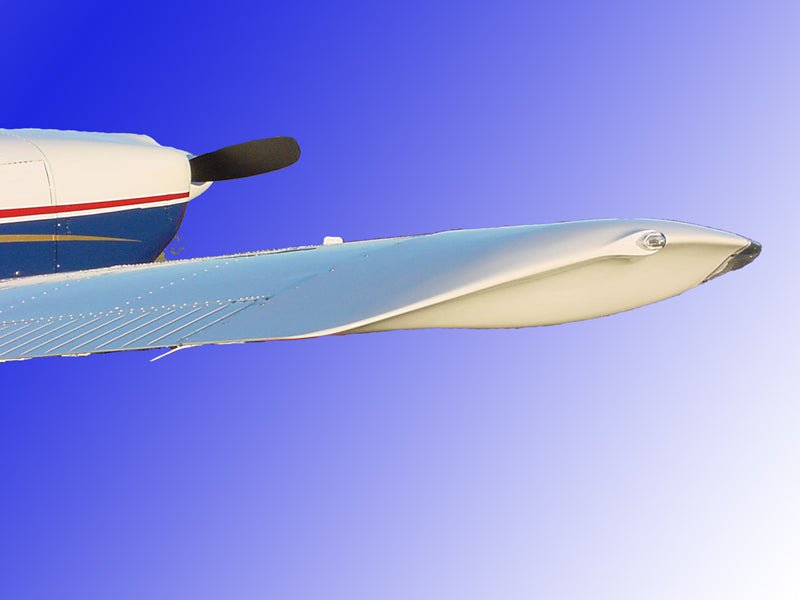

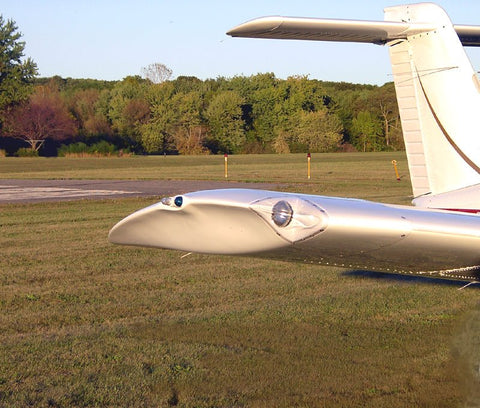

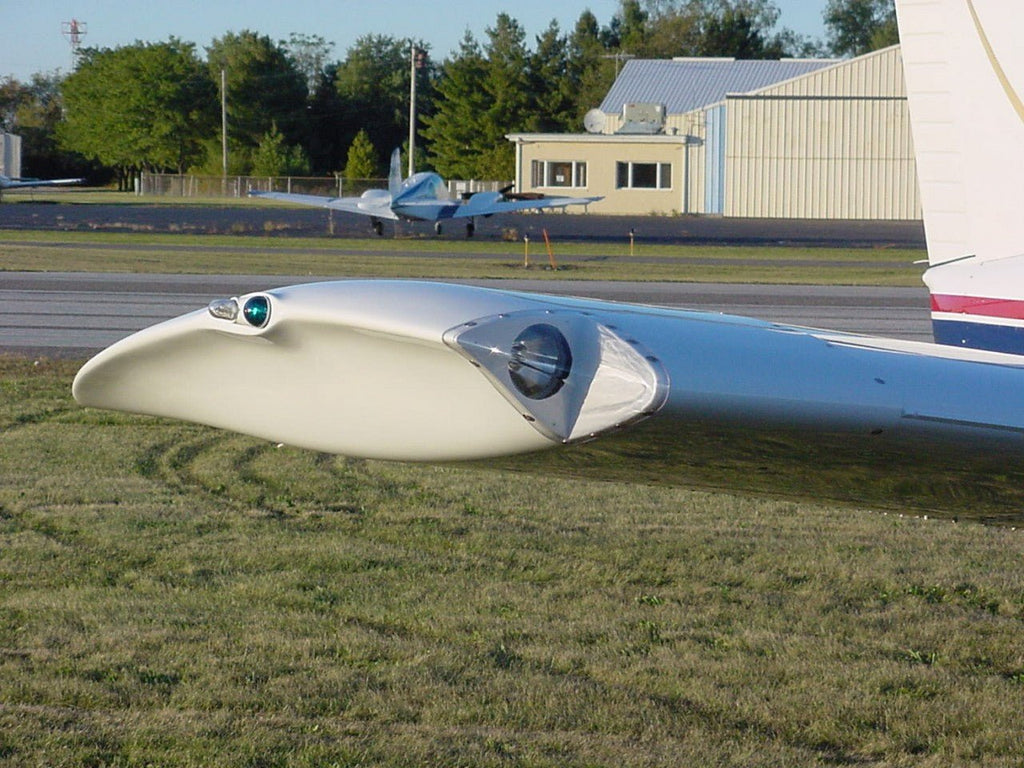

These wing tips with landing lights are made with a "contoured" Hoerner style wing tip and halogen landing lights in the leading edge
They are made of a durable fiberglass and include easy to change and adjust bulbs...
Compared to the original rounded tips these upswept tips will:
Increase cruise speed 2-3 mph
Improve rate of climb 40-70 ft/min
Increase stability and handling
Reduce stall speed 2-3 mph
Reduce take-off roll
Lighting in these tips adds the high visibility and recognition in the traffic pattern
The wing tip kit comes complete with everything necessary to install them including: wire, circuit breaker, switch, installation instructions, and Supplemental Type Certificate.
NOTE: nav and strobe kit not included
The lights will add visibility and recognition in the pattern. For even more visibility and recognition the HID Light system can be added. HIDs produce more then 5X the light output while drawing far less amperage. The HID lights are also warrantied for as long as you own your plane.
Approval Basis: Supplemental Type Certificate No(s) SA1401NW (STC No. SA1401NW)
Eligible aircraft: PA32-300 1979 and up, PA32R-300, PA32R-300T, PA32RT-300, PA32RT-300T.
*PA32-300 applicable on models without tip tanks only
