Product Number: ADS-P301-1-18D
Approval Basis
FAA-PMA Approved
Part Number: ADS1200-301-1
Replaces:
Piper 78741-02, 189-139, 79545-017, 688-431, 19063-02
Aircraft Eligibility:
Piper Models:
PA-28-140 S/N 28-20002 Thru 28-7625029
PA-28-150 S/N 28-1 thru 28-7505260
PA-28-160 S/N 28-1 thru 28-7505260
PA-28-180 S/N 28-1 thru 28-7505260
PA-28-235 S/N 28-10003 thru 28-7610020
PA-28R-180 28R-20005 thru 28R-7635017
PA-28R-200 S/N 28R-20005 thru 28R-7635017
PA-28-151 S/N 28-7415001 thru 28-7615001
PA-32-260 S/N 32-1 thru 32-76300001
PA-32-300 S/N 32-40000 thru 32-764029
PA-32R-300 S/N 32R-7680001 thru 32R-7680013
PA-34-200
Typical Lead Time: Stock
Notes: Kit includes seal for one door, instructions and seal lube.

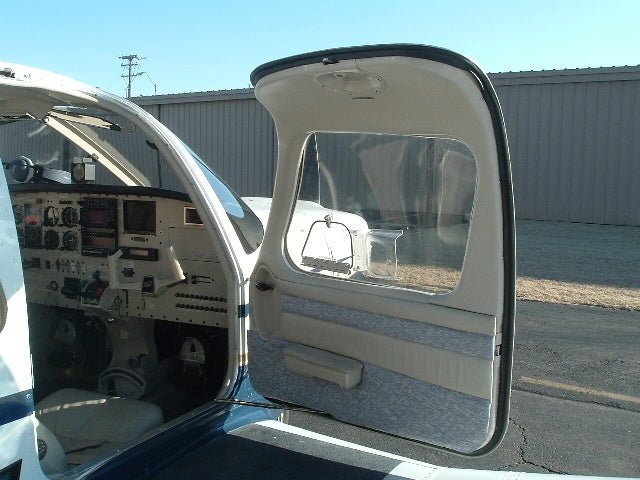

High performance aircraft door and window seals
FAA approved revolutionary new seal design!
Nearly a year of development and testing went into creating this revolutionary new sealing material. This new seal for General Aviation Aircraft is the result of a space age material developed for NASA. It is ideal for airplanes because it conforms to the sealing surfaces, forming a perfect sealing bond between the door and the fuselage. Custom extruded from a special hybrid rubber compound, the new seal is superior to any seal on the market.
The hybrid rubber compound sealing material is unique because it compresses under pressure from the door. When the door stops applying pressure against the seal, the seal no longer compresses and actually makes an impression of the surface pressing against it. This seal conforms to surfaces so well that when you open the door you will actually see a perfect imprint in the seal of every rivet and seam!
The seal has the ability to compress from its full thickness to as small as 1/32" thick without losing its sealing ability. The hybrid compound meets Military Specifications (Mil Spec) and is now certified for use on single engine aircraft by the FAA, requiring only a log book entry. The seal is FAA-PMA APPROVED, Affordable, and Made in the USA. The new seals are available at a fraction of the cost of OEM seals and benefits of their use include an airtight and water tight fit, and greatly reduced cabin noise for even more enjoyable flying!
