Product Number: 20-RD-1100-18D

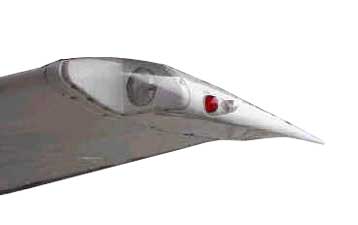

The Cessna Wing Tips With Landing Lights are a superior addition to any eligible Cessna model. The addition of the landing light in each tip provides superior recognition and visibility. The tips are manufactured from hand laid fiberglass for an excellent weight to strength ratio and long life. Advanced tooling assures an excellent fit.
Tips are available for most Cessna single engine models and a variation of leading edges including the Cessna standard leading edge, newer hi-lift leading edge, Horton leading edge, and Sportsman leading edge. The tips come with 50 watt bulbs but can be upgraded to the HID lighting system or LED lights for an additional charge.
The kit comes complete with incandescent bulbs, wiring, circuit breaker, switch, installation knots2u and STC
NOTE: nav and strobe kit not included
Approval Basis: Supplemental Type Certificate
Material: Fiberglass
Finish: White primer, ready to paint
NOTE: This product is designed to transfer your original OEM NAV and Strobe lights to these wing tips.
BE ADVISED:
If you are considering installing LED Nav and Strobe lights in the near future now is the time. We can provide the tips with a flat light base for LED NAV and Strobe installation.
LED Nav and Strobe lights will not fit the current configured wing tip that you transfer your OEM Nav and Strobe lights to.
Specifications: Kit comes with incandescent bulbs, circuit breaker, wire & switch.
Choices: at check out allow you to switch to HID or LED Landing Lights.
Notes: You must specify when ordering if the plane has a Sportsman or Horton leading edge
Eligible Aircraft:
Cessna Models:
1973 & on 172M, 172N, 172P, 172Q, 172RG, 172R, 172S
1977 & on R172K (Hawk XP) S/N R1722000 thru R1723454
1980 & on 172RG S/N 172RG0001 thru 172RG1191
1973 & on 180J, 180K. S/N 18052285 thru 18053203
1972 & on 182P, 182Q, 182R, T182 S/N 18260826 thru 18268615, 182S
1978 & on R182, TR182 S/N R18200001 thru R18202041
1973 & on A185F
1972 & on U206F, TU206F, U206G, TU206G, S/N U20601701 thru U20607020, 206H, T206H
Typical Install time: approximately 14 hrs. Does not include painting
Note: Must specify voltage when Ordering
172 Models: S/N Thru 17269309, except 17258105 through 17258112 and 17261578
R172 Models: R1722000 through R1722724
180 Models: thru S/N 18052905
182 Models: S/N thru 18265965 except 18263479
185 Models: thru S/N 18503458 except 18502300
206 Models: thru S/N U20604074
24/28 Volt:
172 Models: 17258105 thru 17258112, 17261578 and 17269310 & Up
R172 and 172RG Models: S/N 680, R1722725 and on; S/N 172RG0001 and on
180 Models: S/N 18052906 and on
182 Models: S/N 18263479, 18265966 & Up
R182 & TR182 All S/N
185 Models: S/N 18502300, 18503459 and on
206 Models: U20602589 and U20604075 and up
