Product Number: 20-RD-9000-18D

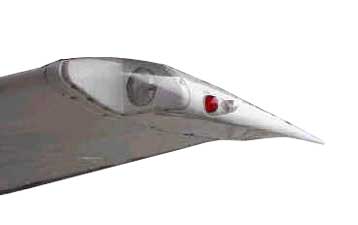

The Cessna Wing Tips With Landing Lights are a superior addition to any eligible Cessna model. The addition of the landing light in each tip provides superior recognition and visibility. The tips are manufactured from hand laid fiberglass for an excellent weight to strength ratio and long life. Advanced tooling assures an excellent fit.
Tips are available for most Cessna single engine models and a variation of leading edges including the Cessna standard leading edge, newer hi-lift leading edge, Horton leading edge, and Sportsman leading edge. The tips come with 50 watt bulbs but can be upgraded to the HID lighting system or LED lights for an additional charge.
The kit comes complete with incandescent bulbs, wiring, circuit breaker, switch, installation knots2u and STC
NOTE: nav and strobe kit not included
Approval Basis: Supplemental Type Certificate
Material: Fiberglass
Finish: White primer, ready to paint
Specifications: Kit comes with incandescent bulbs, circuit breaker, wire & switch.
Choices: at check out allow you to switch to HID or LED Landing Lights.
Notes: You must specify when ordering if the plane has a Sportsman or Horton leading edge.
Eligible Aircraft:
Cessna Models:
150: 150A, B, C, D, E, F, G, H, J, K, L, M; 152, A152
170A, B
172: 172A, B, C, D, E, F, G, H, I, K, L
175: 175A, B, C; P172D
180: 180A, B, C, D, E, F, G, H
182: 182A, B, C, D, E, F, G, H, J, K, L, M
185: 185A, B, C, D, E; A185E
206: P206A, B, C, D, E; U206: U206A, B, C, D, E; TP206A, B, C, D, E
207: 207A, T207, T207A
210-5(205), -5A(205A), 210, 210A, 210B, 210C, 210D, 210E, 210F, and T210F
Typical Install time: approximately 14 hrs. Does not include painting.
